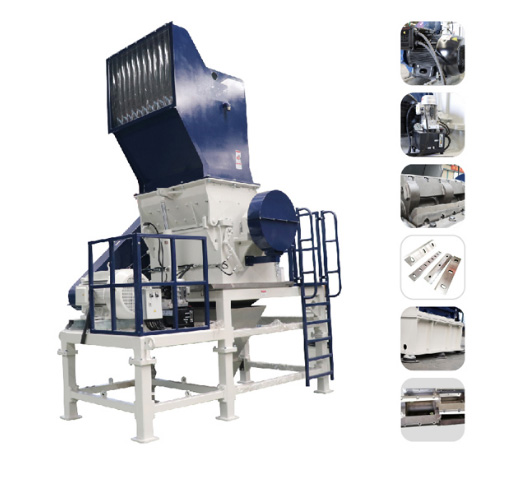

AGF Series-Specify For Film And Bottle Grandulator

AGF Film & bottle crusher is specially designed for the processing of hollow and thin-walled plastics such as film and bottle. It has a center hinged two-piece cutting chamber, which adopts a solid welded steel structure, and the upper and lower parts of the shell intersect horizontally. The reversible stator cutter with double cutting edges is installed in the lower part of the housing as a single element, which allows multiple re sharpening and adjustment of the stator cutter. There is a hinged cradle and hinged door for easy access. The rotor is a heavy-duty paddle type design with a knife cover to protect the blade when machining abrasive applications. In contrast to the rotor, the knife mounting bolt is screwed into the mounting plate. All tools are made of chromium nickel I tool steel as standard material, but when machining special abrasive materials, it can be equipped with a specially designed wear-resistant rotor, using wear-resistant steel parts and hard metal surface. Compared with other rotor designs, V-CUT geometry has obvious advantages, including higher throughput and lower power consumption, better crushing quality and lower noise level. The AGF rotor configuration provides 20-40% additional throughput compared to the standard rotor configuration. The specially designed tool position fixture can adjust the tool position from the outside of the machine, greatly reducing the downtime required for changing the tool position. The base adopts solid welding structure and shockproof rubber feet to reduce vibration and noise. The driving motor is installed on the tension guide rail, which is convenient to adjust the tension of V-belt. Aggregate suction tank. The hopper is specially designed with three sets of curtains to prevent materials from hanging upside down. There are emergency stop buttons on the fuselage and control panel. When the front panel is opened, the safety switch can prevent the machine from starting.
